Increase Security With Visual Elements On Custom HID Cards For Access Control

For many organizations, an access badge starts as a simple white card with a logo and a photo. While that may meet the basic requirement of identification, it does little to address one of the most persistent risks in physical security: badge duplication and counterfeiting. As organizations grow, operate across multiple locations, or manage sensitive environments, the visual security of custom HID cards becomes just as important as the embedded credential technology behind it.

At ADVANTIDGE, we work with organizations of all sizes to transform standard access control credentials into high-security custom HID cards that are significantly more difficult to copy or counterfeit—without requiring changes to their existing access control infrastructure.

Visual Security Works Regardless of Credential Technology

A common misconception is that visual security upgrades are tied to a specific HID technology. In reality, custom visual security elements can be applied whether your organization uses:

• HID low frequency 125 kHz proximity cards

• HID high frequency 13.56 MHz iCLASS or iCLASS SEOS

• Corporate 1000 credential formats

These enhancements are independent of the RF technology inside the card. The result: stronger visual authentication for security staff, reception teams, and supervisors—without disrupting existing systems.

ADVANTIDGE brings more than 20 years of experience supporting HID credentials with advanced visual security features, ensuring that organizations get the benefits of high-security card design without unnecessary complexity.

Why Visual Security Elements Matter

Visual security elements serve two critical purposes:

1. Immediate visual verification – Security personnel can quickly identify authentic credentials at a glance.

2. Anti-counterfeiting protection – Badges become far more difficult and expensive to replicate using consumer-grade printers or illicit duplication methods.

When combined with standard personalization (photo, name, department, expiration date), these elements create a layered security approach that deters misuse and strengthens trust across the organization.

Popular Visual Security Features for HID Cards

ADVANTIDGE supports several high-security visual elements that can be embedded directly into custom HID cards. These features can incorporate company logos, campaign imagery, or unique design elements specific to your organization.

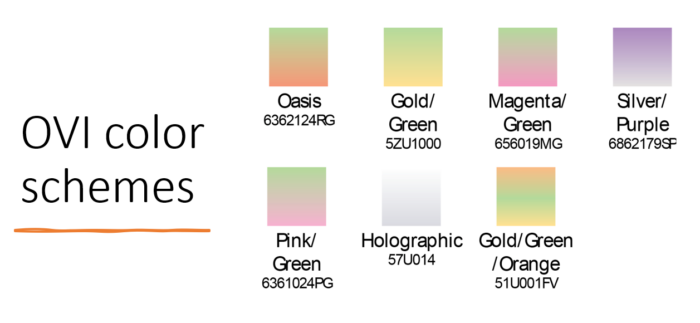

Optical Variable Ink (OVI)

Optical Variable Ink uses color-shifting pigments that reflect light differently depending on the viewing angle. From one angle, the image may appear green; from another, it may appear gold or blue.

This effect is extremely difficult to reproduce with standard printing equipment and provides an immediate visual cue of authenticity. OVI is often used in government IDs and high-security credentials for this reason.

Ultra Violet Ink (UV)

Ultra Violet (UV) ink is invisible under normal lighting conditions and only becomes visible when exposed to a black light. This makes it an effective covert security feature for secondary verification.

Available colors include red, green, and blue. UV elements are ideal for environments where security staff are trained to perform spot checks without drawing attention.

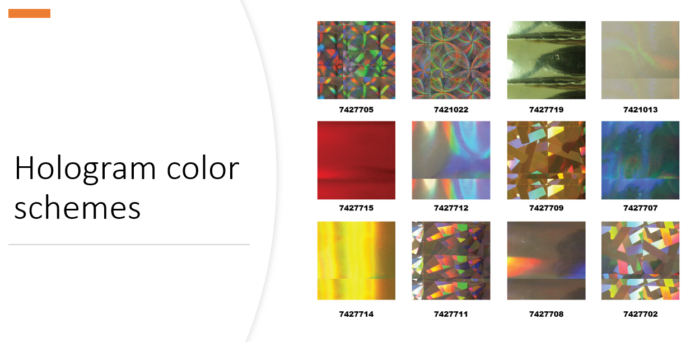

Embedded Foil Holograms

Embedded foil holograms are among the most robust visual security options available. A metallic foil hologram is applied using a punch/die process, stamped onto the artwork sheet, and then protected beneath the card’s overlay layer.

Because the hologram is embedded rather than surface-applied, it cannot be peeled off or transferred, making it significantly more secure. Holograms can include custom logos or imagery unique to your organization.

Maximum hologram sizes:

• Embedded: 2.00” (50.8 mm)

• Surface: 1.95” (49.53 mm)

Artwork Requirements for Custom HID Cards

High-security card production demands precise artwork preparation. To ensure the best results, HID requires:

• Minimum resolution: 300 dpi

• Vector artwork required for all text, logos, holograms, OVI, and spot color elements

Vector-based images provide crisp results and can be resized without loss of quality—something raster formats cannot achieve.

Accepted file types:

• .pdf

• .eps

• .ai

• .psd

Vector formats (.eps, .ai, .pdf) are strongly preferred.

As part of the ordering process, ADVANTIDGE provides a visual proof so your team can confirm that the final card design meets expectations before production begins.

Production, Quantities, and Timing

Custom HID cards with embedded security features are produced under strict quality controls.

• Minimum order quantity: 500 cards

• Volume pricing available at: 1,000 / 2,500 / 5,000 / 10,000+

• Production timeline: 3–4 weeks from approved proof with one time origination fee

• Rush services: Not available

These cards are typically personalized after delivery using industry-leading card printers such as the HID FARGO HDP6600, HDP5000e, or DTC4500e. Custom HID cards are compatible with all ID card printers on the market using direct to card or retransfer technology.

Compatibility Beyond Custom HID Cards

While HID cards are a common use case, these visual security elements are not limited to HID credentials. Any blank badge—CR80 or custom size—can incorporate embedded security features using PVC or composite materials for increased durability.

ADVANTIDGE custom security card services are compatible with:

• Direct-to-card printers

• Retransfer card printers

• Overlaminate ID card printers for extended card life

This flexibility allows organizations to standardize security across multiple badge types and use cases.

Why Organizations Choose ADVANTIDGE

From small teams to global enterprises, organizations partner with ADVANTIDGE because we bring consultative expertise—not just products. We help clients evaluate whether custom security cards are the right fit, guide artwork and production requirements, and ensure compatibility with existing printers and systems.

If you’d like to see samples, review mockups of your artwork, or explore whether custom visual security elements are appropriate for your organization, ADVANTIDGE is ready to help.
